Open cell ceiling STAR 3 in the Dozentenfoyer at the ETH Zurich

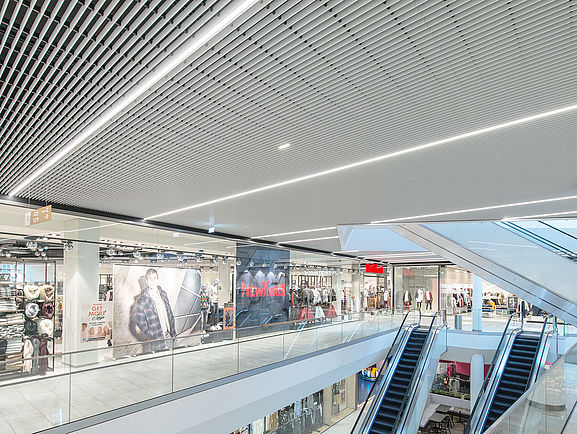

Special lengths of linear louvers fit seamlessly together at ceiling level and direct the movement of people, i.e. the point the way.
The U 94 carriers of the open cell ceiling were screw-connected from below to the supporting grid of the upper ceiling
LED downlight PUNTEO [lighting POINT by durlum] integrated into the open cell ceiling
STAR 3 is a delicate, linear open cell ceiling. The combination of the blades and the clearly defined edges creates a unique appearance. If the main blades are painted in different colors, completely new ceiling designs are generated in combination with the recessed black secondary blades. STAR 3 is available with different pitches.
- lighting spots can be easily integrated into the system
- contributes directly to Green Building and LEED certification
STAR 3 linear louvre open cell ceiling
Dimensions
2' x 4' [609.6 x 1219.2 mm]
Main blade dimensions
Width: 13/16" [3 mm]
Hight: 3/16" [20.4 mm]
Blade pitch: 13/16"; 1"; 1 3/16" [20.3; 25.4; 30.5 mm]
Secondary blade dimensions
Width: 11/32" [9 mm]
Hight: 27/32" [21.5 mm]
Blade pitch: 1' – 3" [381 mm]
Material and surface
Aluminium. Surface strip-painted.
Main blades: White, black, RAL 9006. Other colors available on request
Secondary blades: Black
Fire behaviour
In accordance with ASTM E84 Flame Spread Index for steel is 25 or less and Smoke Developed Index for steel is 50 or less.
New design concepts can be defined with the metal open-cell ceilings from our French subsidiary durlumen. Open, transparent and individual ceiling designs can be created with these open-cell ceilings which are divided into linear, single-blade, wide-blade and multi-directional cells. The design options are virtually unlimited, also when combined with other metal ceilings and lighting systems from durlum.
Find the latest open cell ceiling projects here >
